PRODUCT DESCRIPTION
The Rotary Screen Printing Machine is a high-speed, continuous fabric printing solution ideal for large-scale textile production. Designed for roll-to-roll printing, this system ensures consistent registration, vibrant color output, and maximum productivity.
It operates using cylindrical rotary screens that allow seamless and uninterrupted printing on woven, knitted, or nonwoven fabrics. The fabric is guided through a series of screen stations, where each color is precisely applied with the help of squeegee blades and magnetic rollers.
This machine offers servo-controlled drives for precise movement, ensuring accurate repeat lengths and minimal wastage. Its touchscreen control panel allows easy operation, real-time adjustments, and automated diagnostics. Optional features such as UV curing systems, thermo-fixation units, and tension control modules can be integrated for superior finishing.
Built with a modular design, it supports easy customization and expansion, making it ideal for both fashion printing and industrial textile applications. The robust stainless steel frame ensures durability and corrosion resistance, while the enclosed ink delivery system minimizes spillage and enhances cleanliness.
Whether used for reactive dyes, disperse inks, or pigments, the Rotary Screen Printing Machine delivers sharp outlines, dense coverage, and fast throughput, making it a preferred choice for textile mills aiming for scale, quality, and efficiency.
| Specification | Details |
|---|---|
| Standard Printing Width | 1280, 1620, 1850, & 2250 mm |
| Printing Repeat | 640, 820, 914, 1018 mm |
| Printing Speed | 8 to 80 meters/minute |
| Number of Colors | 8, 10, 12, 16, 20, 24 |
| Suitable Fabrics | Cotton, Viscose, Polyester, Knitted, Lycra, etc. |
| Drive System | A.C. Variable-Inverter Drive & All Servo Drive |
| Dryer Type | Oil / Gas / Steam Heated |

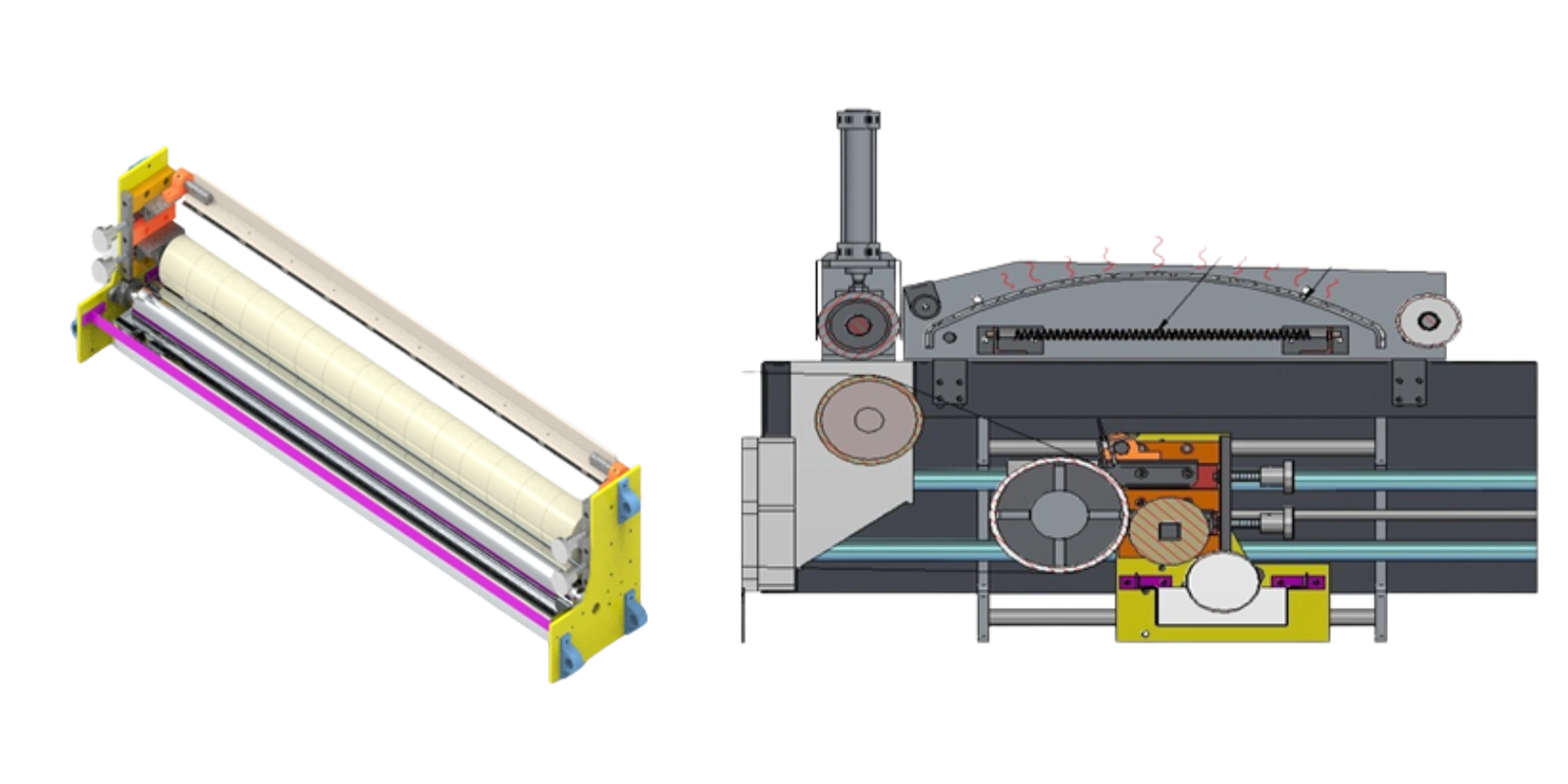

PVA-GLUING UNIT (OPTIONAL)
PVA glue application unit through rubber roller and segment device.
Adhesive applying application unit and adhesive stripping unit for fine layer adjustment rubber squeegee.

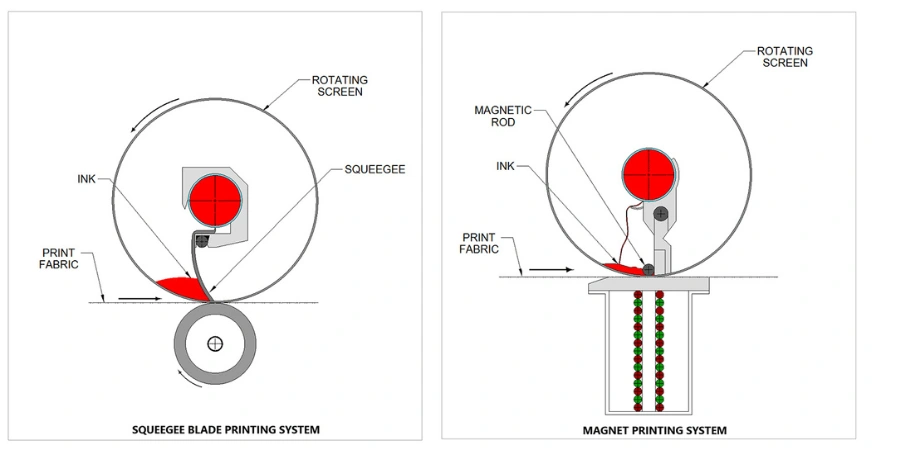

SQUEEGEE SYSTEM
A squeegee is a tool with a blade that removes or controls colours across surfaces.
A tool possessing a wooden or metal handle to which is attached a thin, flexible rubber or plastic blade. A squeegee is used in screen printing to force ink through the printing screen and onto the substrate.

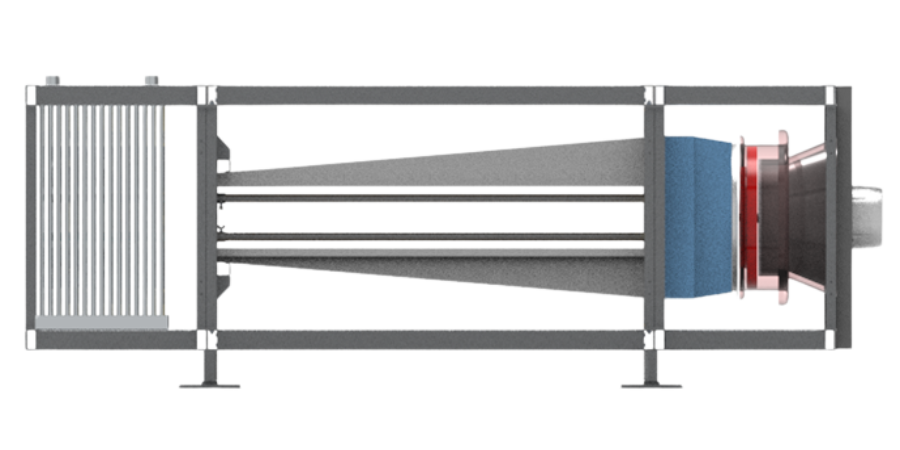

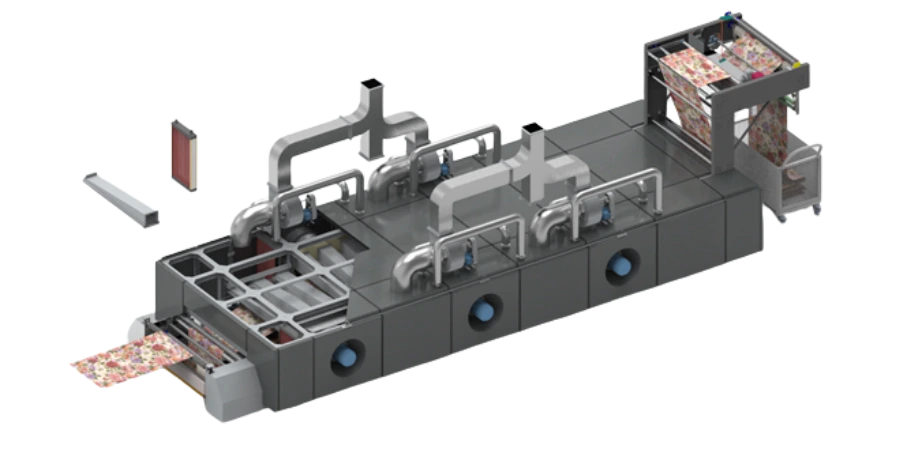

HIGH EFFICIENCY DRYER
A float dryer is used to dry printed cloth, especially when printing with heat-set inks that require heat for proper drying and fixation.
OIL / STEAM HEATED DRYER
Each section of the dryer is equipped with high-efficiency double radiators. With four radiators per chamber, the system offers high drying capacity and faster production.
GAS HEATING DRYER
The dryer features a closed-circuit design that enables rapid temperature gain, ensuring high drying efficiency.
The high-efficiency dryer features an ingenious nozzle system with adjustable inverter-controlled airflow for uniform temperature distribution, easily removable lint filters and nozzles for convenient cleaning, superior insulation panels for energy savings, and a modular chamber design for optimal flexibility and performance.
Available Models:
•Float Dryer
•Float cum Conveyor Dryer

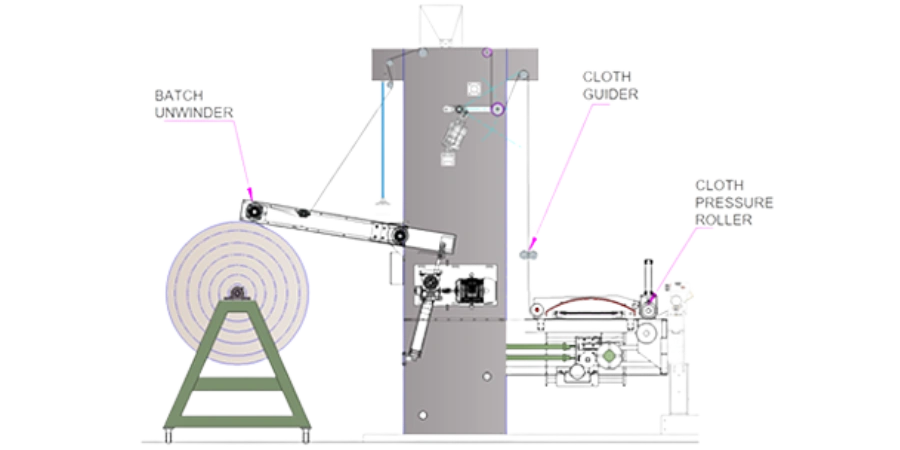

INFEED OPTIONS
The infeed system of a rotary screen printing machine is essential for smooth and precise fabric feeding, which directly affects print accuracy and fabric handling. Its configuration may vary based on production requirements and fabric type.
Key Features
Continuous Roll-to-Roll Printing
Precise Color Registration
High-Speed Rotary Operation
Servo-Controlled Blanket Drive
Modular Chamber Design
Easy Maintenance Access
