PRODUCT DESCRIPTION

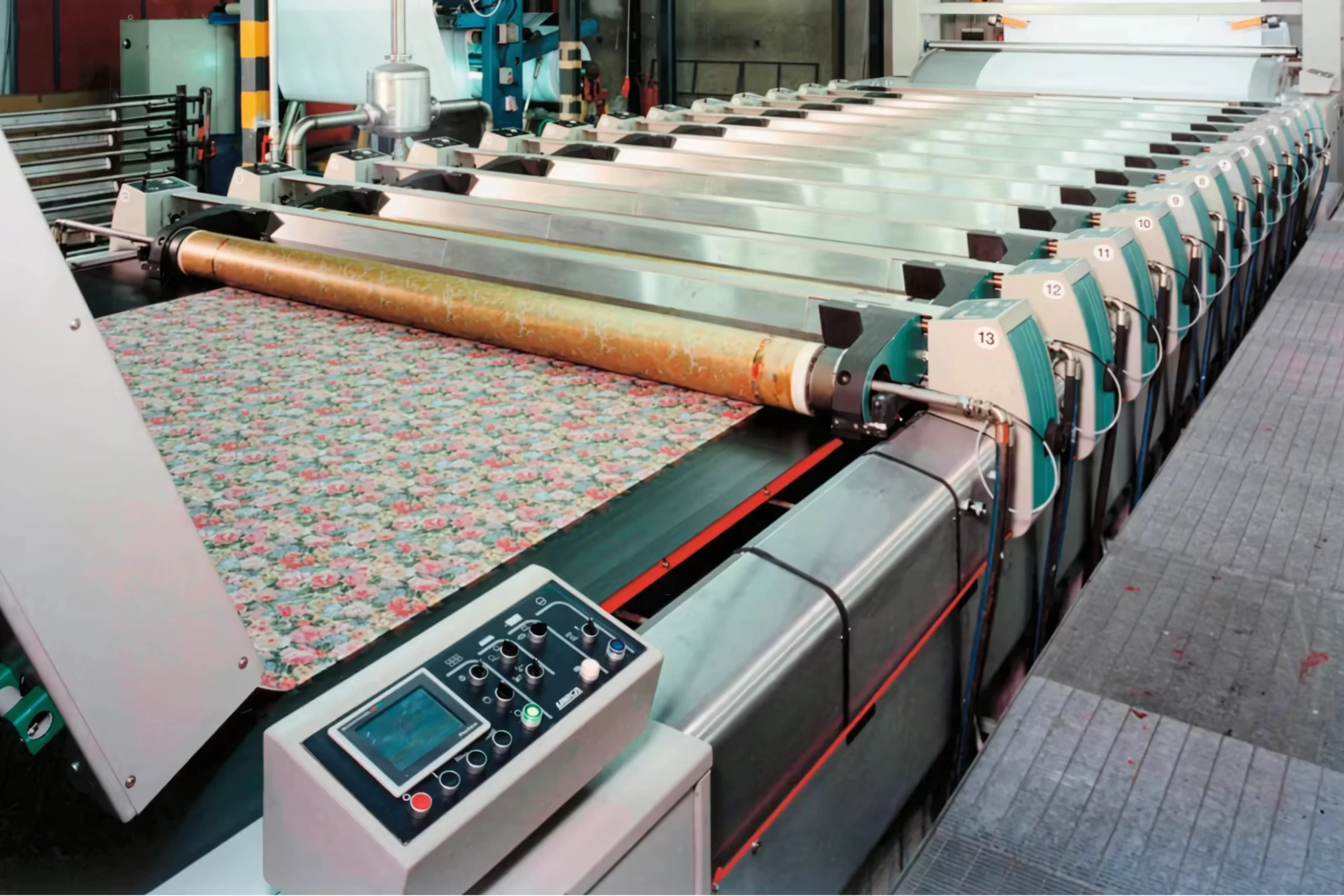

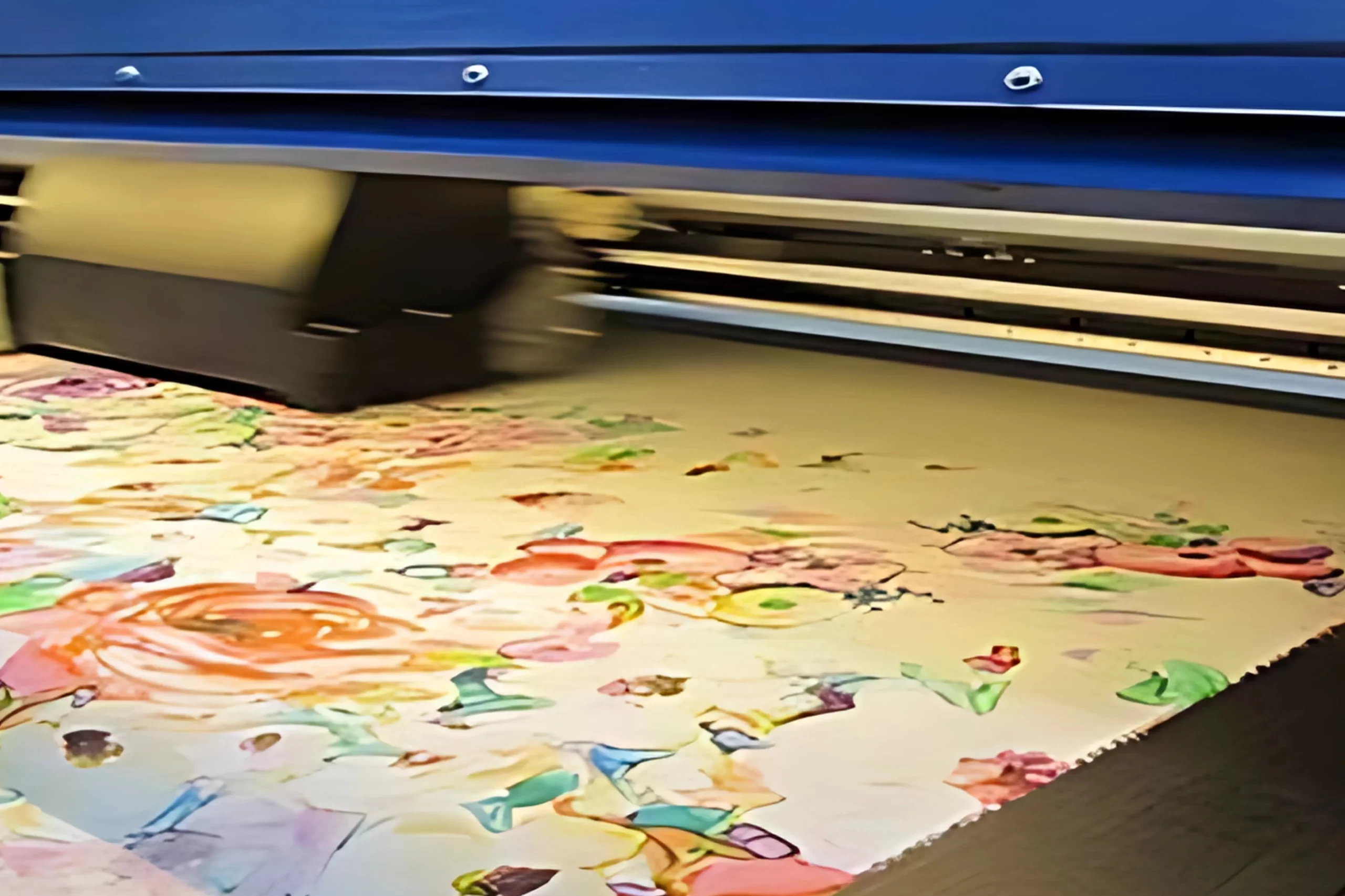

A Textile Printing Blanket / Belt is a conveyor belt installed on a Fabric Printing Machine. It acts as a medium which carries the Fabric / Cloth to be printed from first screen to the last screen accurately so that multiple colors can be printed on the Fabric / Cloth.
The Textile Printing Blanket is usually of 3 type: Textile Printing Rubber Blanket , Textile Printing PU Blanket and PVC Printing Blanket.
The main difference between the three types is the material being used.
1. Textile Printing Rubber Blanket
These were the blankets that were first used in Textile Printing Machines. The benefits of Textile Printing Rubber Blankets are its long life, Endless construction / no Joint and cost effective over Textile Printing Blankets made from PU.
2. Textile Printing PU Blanket
These are the latest belts which are used in Textile Printing Machines. There are various types of PU Printing Blankets that vary in structure, thickness, PU quality, strength, finish etc. Wide range of quality that is available in the market and hence it is very important to work with a trusted supplier.
Apart from the fabric structure, the quality of PU used in the Textile Printing Blanket is also very important. The resistance to chemicals and abrasion and the strength of the joint is largely dependent on the PU Quality of the Blanket.
3. Printing PVC Blanket
The PVC Printing Blanket is a specialized printing accessory designed for precision and durability in offset and screen printing applications. Made from high-quality Polyvinyl Chloride (PVC) materials, this blanket ensures excellent ink transfer, dimensional stability, and chemical resistance, making it ideal for both textile and paper printing industries.
| Specification | Details |
|---|---|
| Material Composition | High-quality synthetic rubber with multi-layered fabric reinforcement |
| Surface Texture | Smooth, non-stick, anti-static coated surface |
| Thickness Range | 2.2 mm , 3.5 mm to 5.5 mm (±0.05 mm tolerance) |
| Width Availability | Up to 3600 mm (customizable) |
| Length | Custom-built as per machine requirement |
| Heat Resistance | Up to 220°C continuous |
| Elongation Control | Less than 1% at maximum tension |
| Tensile Strength | High tensile strength > 4000 N/50 mm |
| Joint Type | Stainless Steel Mechanical Pin Joint / Endless (Optional) |
| Antistatic Properties | Built-in static discharge layer |
| Application | Rotary Screen Printing & Flatbed Printing Machines |
| Durability | 6–12 months (depending on usage conditions and maintenance) |
| Maintenance | Easy to clean; lint and chemical-resistant |
Key Features
High Heat Resistance
Non-Stick Surface
Low Elongation
Anti-Static Layer
Durable & Flexible
Strong Joint System
