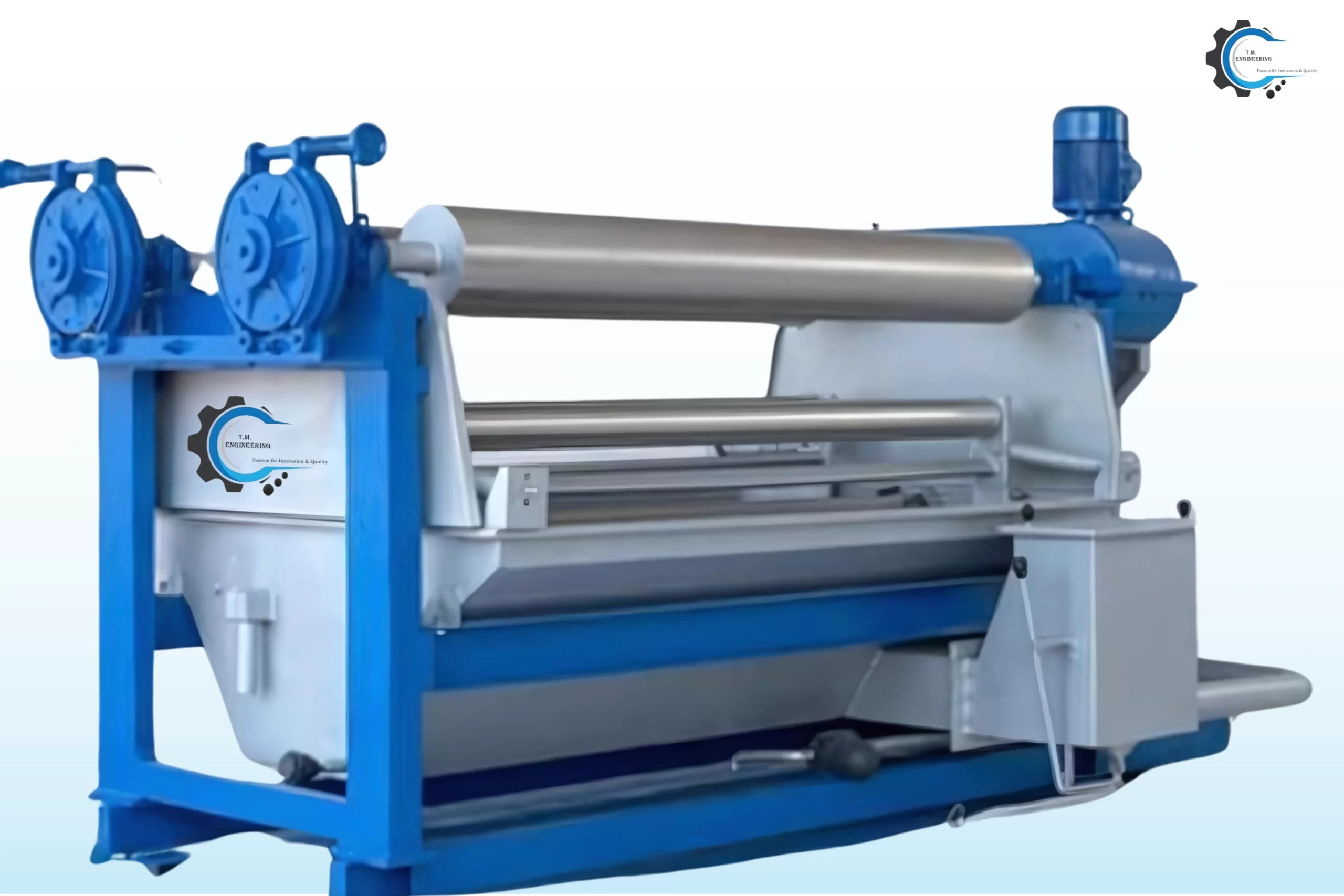

Dyeing Jigger Machine
Products > Dyeing Jigger Machine
Download Brochure
Get a Quote
Get the Brochure
PRODUCT DESCRIPTION
The Dyeing Jigger Machine is a highly efficient textile dyeing solution engineered for uniform and controlled dye application on woven fabrics. Designed to handle a wide range of fabric types and dyeing processes, this machine ensures consistent penetration and color depth across the fabric width, making it ideal for both batch and continuous dyeing operations.
Equipped with advanced drive systems, temperature control, and fabric tension management, the Jigger provides exceptional reliability and repeatability. It is particularly suitable for open-width fabric dyeing where crease-free processing and precise liquor control are essential.
Dyeing Process by Jigger Dyeing Machine:
The dyeing process on jigger is regarded as a series of intermittent padding operation followed by dwelling periods on the main roller , during which the dyeing action and diffusion takes place.
The factors controlling the rate of dye absorption are:
The amount of interstitial dye liquor retained in the interstices of the fabric weave.
The exhaustion of the interstitial liquor in the dwell period between successive immersions.
The degree of interchange of liquor during one immersion (interchange factor).
Limitations of Jigger Dyeing
Jigs exert considerable lengthwise tension on the fabric and are more suitable for the dyeing of woven than knitted fabrics.
In textile preparation due to the swelling and dissolution of size, which makes the fabric slippery and unstable in roll form.
The low liquor ratio makes washing-off difficult.
There is little mechanical action in a jig machine and it is less suitable where vigorous scouring is required before dyeing.
Moiré effects or water marks may arise on some acetate and nylon fabrics because of pressure flattening the structure of the rolled fabric.
| Specification | Details |
|---|---|
| Machine Type | Open or Fully Enclosed Construction |
| Drive System | AC Motor / Inverter Control |
| Operation | Semi-Automatic / Fully Automatic |
| Heating System | Electric / Steam with Temperature Controller |
| Circulation System | Water Recirculation with Liquor Control |
| Fabric Compatibility | Cotton, Polyester, Viscose, Blends |
| Capacity | Handles fabric loads up to 800 kg (minimum 150 kg) |
| Construction | S.S. Cladded / C.I. Wall Mounted |
Key Features
Open / Enclosed Body
AC / Inverter Drive
Electric / Steam Heating
Water Circulation System
Auto / Semi-Auto Operation
Up to 800 kg Capacity
